initAtoms.h File Reference

Initialize the atom configuration. More...

#include "mytype.h"

Include dependency graph for initAtoms.h:

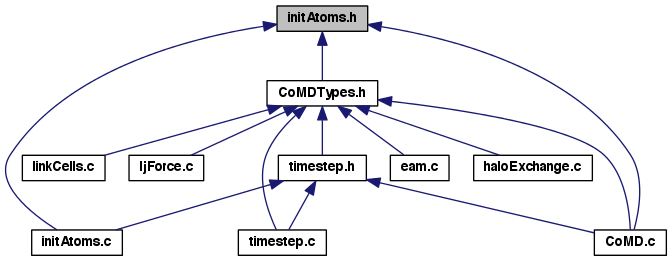

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	AtomsSt
	Atom data. More...

Typedefs
typedef struct AtomsSt	Atoms
	Atom data. More...

Functions
Atoms *	initAtoms (struct LinkCellSt *boxes)
	Allocates memory to store atom data. More...
void	destroyAtoms (struct AtomsSt *atoms)
void	createFccLattice (int nx, int ny, int nz, real_t lat, struct SimFlatSt *s)
	Creates atom positions on a face centered cubic (FCC) lattice with nx * ny * nz unit cells and lattice constant lat. More...
void	setVcm (struct SimFlatSt *s, real_t vcm[3])
	Sets the center of mass velocity of the system. More...
void	setTemperature (struct SimFlatSt *s, real_t temperature)
	Sets the temperature of system. More...
void	randomDisplacements (struct SimFlatSt *s, real_t delta)
	Add a random displacement to the atom positions. More...

Detailed Description

Initialize the atom configuration.

Definition in file initAtoms.h.

Typedef Documentation

typedef struct AtomsSt Atoms

Atom data.

Function Documentation

void createFccLattice	(	int	nx,
		int	ny,
		int	nz,
		real_t	lat,
		SimFlat *	s
	)

Creates atom positions on a face centered cubic (FCC) lattice with nx * ny * nz unit cells and lattice constant lat.

Set momenta to zero.

Definition at line 64 of file initAtoms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void destroyAtoms

(

struct AtomsSt *

atoms

)

Definition at line 52 of file initAtoms.c.

Here is the caller graph for this function:

Atoms* initAtoms

(

LinkCell *

boxes

)

Allocates memory to store atom data.

Call functions such as createFccLattice and setTemperature to set up initial atom positions and momenta.

Definition at line 23 of file initAtoms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void randomDisplacements	(	SimFlat *	s,
		real_t	delta
	)

Add a random displacement to the atom positions.

Atoms are displaced by a random distance in the range [-delta, +delta] along each axis.

Parameters

[in]

delta

The maximum displacement (along each axis).

Definition at line 187 of file initAtoms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void setTemperature	(	SimFlat *	s,
		real_t	temperature
	)

Sets the temperature of system.

Selects atom velocities randomly from a boltzmann (equilibrium) distribution that corresponds to the specified temperature. This random process will typically result in a small, but non zero center of mass velocity and a small difference from the specified temperature. For typical MD runs these small differences are unimportant, However, to avoid possible confusion, we set the center of mass velocity to zero and scale the velocities to exactly match the input temperature.

Definition at line 145 of file initAtoms.c.

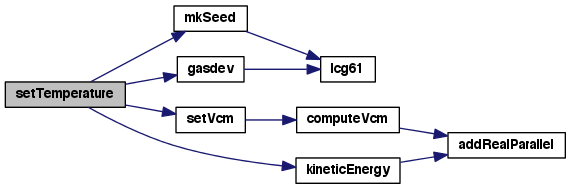

Here is the call graph for this function:

Here is the caller graph for this function:

void setVcm	(	SimFlat *	s,
		real_t	newVcm[3]
	)

Sets the center of mass velocity of the system.

Parameters

[in]

newVcm

The desired center of mass velocity.

Definition at line 111 of file initAtoms.c.

Here is the call graph for this function:

Here is the caller graph for this function:
