Cabana_Experimental_NeighborList.hpp File Reference

ArborX tree-based neighbor lists. More...

#include <Cabana_NeighborList.hpp>
#include <Cabana_Slice.hpp>
#include <Cabana_Types.hpp>
#include <ArborX.hpp>
#include <Kokkos_Core.hpp>
#include <cassert>

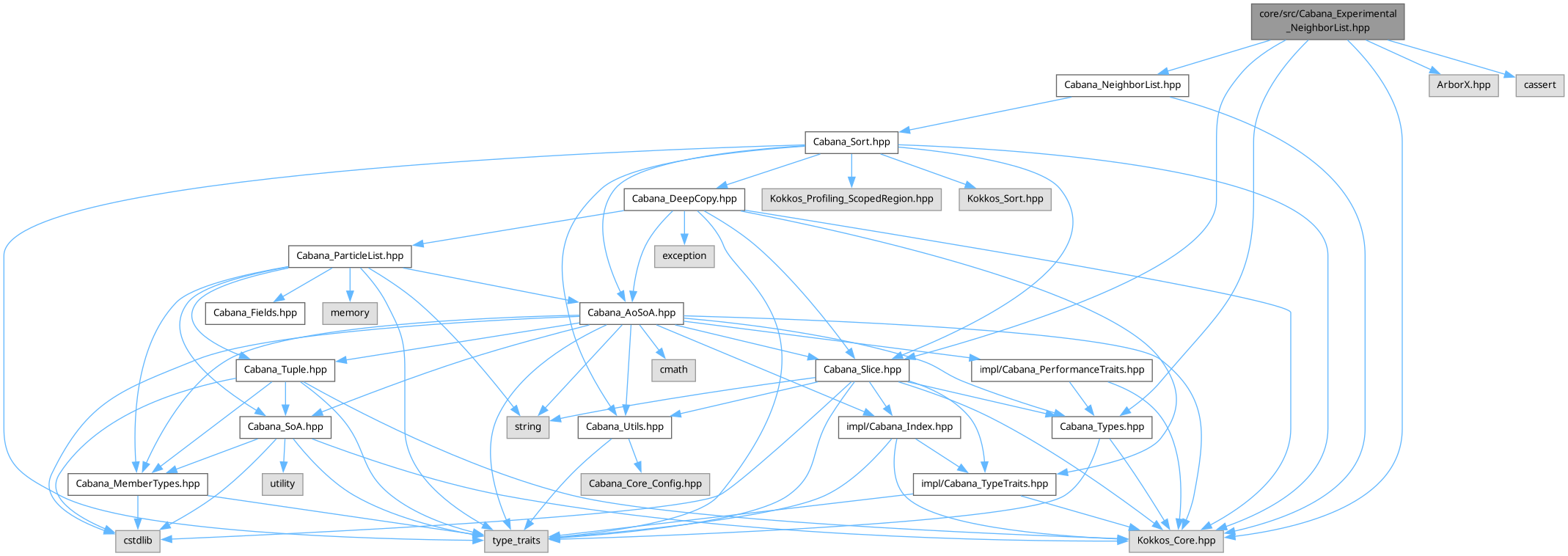

Include dependency graph for Cabana_Experimental_NeighborList.hpp:

Go to the source code of this file.

Classes
struct	ArborX::AccessTraits< Positions, PrimitivesTag, std::enable_if_t< Cabana::is_slice< Positions >{}||Kokkos::is_view< Positions >{}> >
	Neighbor access trait for Cabana slice and/or Kokkos View. More...
struct	ArborX::AccessTraits< Cabana::Experimental::Impl::SubPositionsAndRadius< Positions >, PredicatesTag >
	Neighbor access trait. More...
struct	Cabana::Experimental::CrsGraph< MemorySpace, Tag >
	1d ArborX neighbor list storage layout. More...
struct	Cabana::Experimental::Dense< MemorySpace, Tag >
	2d ArborX neighbor list storage layout. More...
class	Cabana::NeighborList< Experimental::CrsGraph< MemorySpace, Tag > >
	1d ArborX NeighborList interface. More...
class	Cabana::NeighborList< Experimental::Dense< MemorySpace, Tag > >
	2d ArborX NeighborList interface. More...

Namespaces
namespace	Cabana
	Core: particle data structures and algorithms.

Functions
template<typename ExecutionSpace, typename Positions, typename Tag>
auto	Cabana::Experimental::makeNeighborList (ExecutionSpace space, Tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.
template<typename Positions, typename Tag>
auto	Cabana::Experimental::makeNeighborList (Tag tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.
template<typename DeviceType, typename Positions, typename Tag>
auto	Cabana::Experimental::makeNeighborList (Tag tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.
template<typename ExecutionSpace, typename Positions, typename Tag>
auto	Cabana::Experimental::make2DNeighborList (ExecutionSpace space, Tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.
template<typename Positions, typename Tag>
auto	Cabana::Experimental::make2DNeighborList (Tag tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.
template<typename DeviceType, typename Positions, typename Tag>
auto	Cabana::Experimental::make2DNeighborList (Tag tag, Positions const &positions, typename Positions::size_type first, typename Positions::size_type last, typename Positions::value_type radius, int buffer_size=0)
	Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.

Detailed Description

ArborX tree-based neighbor lists.

Function Documentation

make2DNeighborList() [1/3]

template<typename ExecutionSpace, typename Positions, typename Tag>

auto Cabana::Experimental::make2DNeighborList	(	ExecutionSpace	space,
		Tag	,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.

Template Parameters

ExecutionSpace	Kokkos execution space.
Positions	The position type.
Tag	Tag indicating whether to build a full or half neighbor list.

Parameters

space	Kokkos execution space.
positions	The particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors per particle.

Neighbor list implementation most appropriate for highly varying particle densities.

make2DNeighborList() [2/3]

template<typename Positions, typename Tag>

auto Cabana::Experimental::make2DNeighborList	(	Tag	tag,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.

Template Parameters

Positions	The position type.
Tag	Tag indicating whether to build a full or half neighbor list.

Parameters

tag	Tag indicating whether to build a full or half neighbor list.
positions	The particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors per particle.

Neighbor list implementation most appropriate for highly varying particle densities.

make2DNeighborList() [3/3]

template<typename DeviceType, typename Positions, typename Tag>

auto Cabana::Experimental::make2DNeighborList	(	Tag	tag,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 2D layout for particles and neighbors.

Template Parameters

DeviceType	Kokkos device type.
Positions	The position type.
Tag	Tag indicating whether to build a full or half neighbor list.

Parameters

tag	Tag indicating whether to build a full or half neighbor list.
positions	The particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors per particle.

Neighbor list implementation most appropriate for highly varying particle densities.

makeNeighborList() [1/3]

template<typename ExecutionSpace, typename Positions, typename Tag>

auto Cabana::Experimental::makeNeighborList	(	ExecutionSpace	space,
		Tag	,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.

Template Parameters

ExecutionSpace	Kokkos execution space.
Positions	The position type.
AlgorithmTag	Tag indicating whether to build a full or half neighbor list.

Parameters

space	Kokkos execution space.
positions	The particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors.

Neighbor list implementation most appropriate for highly varying particle densities.

makeNeighborList() [2/3]

template<typename Positions, typename Tag>

auto Cabana::Experimental::makeNeighborList	(	Tag	tag,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.

Template Parameters

Positions	The position type.
Tag	Tag indicating whether to build a full or half neighbor list.

Parameters

tag	Tag indicating whether to build a full or half neighbor list.
positions	The containing the particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors.

Neighbor list implementation most appropriate for highly varying particle densities.

makeNeighborList() [3/3]

template<typename DeviceType, typename Positions, typename Tag>

auto Cabana::Experimental::makeNeighborList	(	Tag	tag,
		Positions const &	positions,
		typename Positions::size_type	first,
		typename Positions::size_type	last,
		typename Positions::value_type	radius,
		int	buffer_size = 0 )

Neighbor list implementation using ArborX for particles within the interaction distance with a 1D compressed layout for particles and neighbors.

Template Parameters

DeviceType	Kokkos device type.
Positions	The position type.
Tag	Tag indicating whether to build a full or half neighbor list.

Parameters

tag	Tag indicating whether to build a full or half neighbor list.
positions	The particle positions.
first	The beginning particle index to compute neighbors for.
last	The end particle index to compute neighbors for.
radius	The radius of the neighborhood. Particles within this radius are considered neighbors.
buffer_size	Optional guess for maximum number of neighbors.

Neighbor list implementation most appropriate for highly varying particle densities.
