Grid field arrays. More...

#include <Cabana_Grid_IndexSpace.hpp>
#include <Cabana_Grid_LocalGrid.hpp>
#include <Cabana_Grid_MpiTraits.hpp>
#include <Cabana_Grid_Types.hpp>
#include <Kokkos_Core.hpp>
#include <cmath>
#include <memory>
#include <type_traits>
#include <vector>
#include <mpi.h>

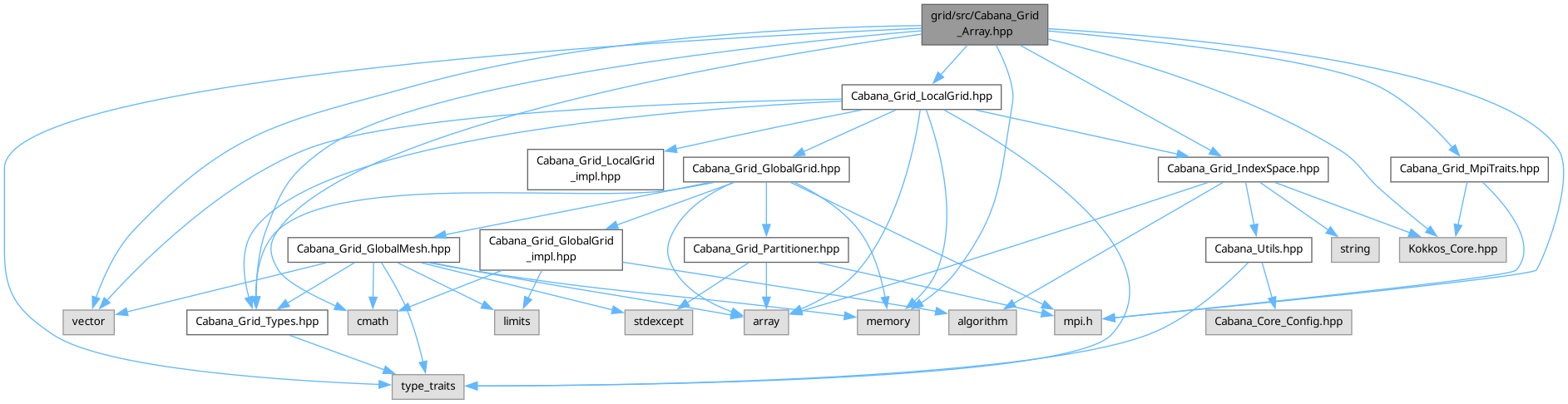

Include dependency graph for Cabana_Grid_Array.hpp:

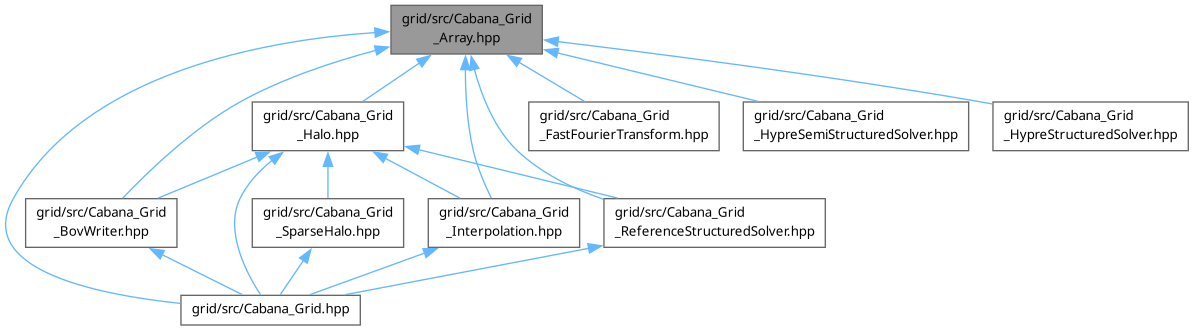

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Cabana::Grid::ArrayLayout< EntityType, MeshType >
	Entity layout for array data on the local mesh. More...

struct	Cabana::Grid::is_array_layout< class >
	Array static type checker. More...

struct	Cabana::Grid::is_array_layout< ArrayLayout< EntityType, MeshType > >
	Array static type checker. More...

struct	Cabana::Grid::is_array_layout< const ArrayLayout< EntityType, MeshType > >
	Array static type checker. More...

class	Cabana::Grid::Array< Scalar, EntityType, MeshType, Params >
	Array of field data on the local mesh. More...

struct	Cabana::Grid::is_array< class >

struct	Cabana::Grid::is_array< Array< Scalar, EntityType, MeshType, Params... > >

struct	Cabana::Grid::is_array< const Array< Scalar, EntityType, MeshType, Params... > >

struct	Cabana::Grid::ArrayOp::DotFunctor< ViewType, NumSpaceDim >
	Dot product functor. More...

struct	Cabana::Grid::ArrayOp::NormInfFunctor< ViewType, NumSpaceDim >
	Infinity norm functor. More...

struct	Cabana::Grid::ArrayOp::Norm1Functor< ViewType, NumSpaceDim >
	One norm functor. More...

struct	Cabana::Grid::ArrayOp::Norm2Functor< ViewType, NumSpaceDim >
	Two norm functor. More...

Namespaces
namespace	Cabana
	Core: particle data structures and algorithms.

Functions
template<class EntityType, class MeshType>
std::shared_ptr< ArrayLayout< EntityType, MeshType > >	Cabana::Grid::createArrayLayout (const std::shared_ptr< LocalGrid< MeshType > > &local_grid, const int dofs_per_entity, EntityType)
	Create an array layout over the entities of a local grid.

template<class EntityType, class MeshType>
std::shared_ptr< ArrayLayout< EntityType, MeshType > >	Cabana::Grid::createArrayLayout (const std::shared_ptr< GlobalGrid< MeshType > > &global_grid, const int halo_cell_width, const int dofs_per_entity, EntityType)
	Create an array layout over the entities of a grid given local grid parameters. An intermediate local grid will be created and assigned to the layout.

template<class Scalar, class... Params, class EntityType, class MeshType>
std::shared_ptr< Array< Scalar, EntityType, MeshType, Params... > >	Cabana::Grid::createArray (const std::string &label, const std::shared_ptr< ArrayLayout< EntityType, MeshType > > &layout)
	Create an array with the given array layout. Views are constructed over the ghosted index space of the layout.

template<class Scalar, class EntityType, class MeshType, class... Params>
std::shared_ptr< Array< Scalar, EntityType, MeshType, typename Array< Scalar, EntityType, MeshType, Params... >::subview_layout, typename Array< Scalar, EntityType, MeshType, Params... >::memory_space, typename Array< Scalar, EntityType, MeshType, Params... >::subview_memory_traits > >	Cabana::Grid::createSubarray (const Array< Scalar, EntityType, MeshType, Params... > &array, const int dof_min, const int dof_max)
	Create a subarray of the given array over the given range of degrees of freedom.

template<class Scalar, class... Params, class EntityType, class MeshType>
std::shared_ptr< Array< Scalar, EntityType, MeshType, Params... > >	Cabana::Grid::ArrayOp::clone (const Array< Scalar, EntityType, MeshType, Params... > &array)
	Clone an array. Do not initialize the clone.

template<class Array_t, class DecompositionTag>
void	Cabana::Grid::ArrayOp::assign (Array_t &array, const typename Array_t::value_type alpha, DecompositionTag tag)
	Assign a scalar value to every element of an array.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 3==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::scale (Array_t &array, const typename Array_t::value_type alpha, DecompositionTag tag)
	Scale every element of an array by a scalar value. 3D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 2==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::scale (Array_t &array, const typename Array_t::value_type alpha, DecompositionTag tag)
	Scale every element of an array by a scalar value. 2D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 3==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::scale (Array_t &array, const std::vector< typename Array_t::value_type > &alpha, DecompositionTag tag)
	Scale every element of an array by a scalar. 3D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 2==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::scale (Array_t &array, const std::vector< typename Array_t::value_type > &alpha, DecompositionTag tag)
	Scale every element of an array by a scalar. 2D specialization.

template<class Array_t, class DecompositionTag>
void	Cabana::Grid::ArrayOp::copy (Array_t &a, const Array_t &b, DecompositionTag tag)
	Copy one array into another over the designated decomposition. A <- B.

template<class Array_t, class DecompositionTag>
std::shared_ptr< Array_t >	Cabana::Grid::ArrayOp::cloneCopy (const Array_t &array, DecompositionTag tag)
	Clone an array and copy its contents into the clone.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 3==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::update (Array_t &a, const typename Array_t::value_type alpha, const Array_t &b, const typename Array_t::value_type beta, DecompositionTag tag)
	Update two vectors such that a = alpha * a + beta * b. 3D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 2==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::update (Array_t &a, const typename Array_t::value_type alpha, const Array_t &b, const typename Array_t::value_type beta, DecompositionTag tag)
	Update two vectors such that a = alpha * a + beta * b. 2D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 3==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::update (Array_t &a, const typename Array_t::value_type alpha, const Array_t &b, const typename Array_t::value_type beta, const Array_t &c, const typename Array_t::value_type gamma, DecompositionTag tag)
	Update three vectors such that a = alpha * a + beta * b + gamma * c. 3D specialization.

template<class Array_t, class DecompositionTag>
std::enable_if_t< 2==Array_t::num_space_dim, void >	Cabana::Grid::ArrayOp::update (Array_t &a, const typename Array_t::value_type alpha, const Array_t &b, const typename Array_t::value_type beta, const Array_t &c, const typename Array_t::value_type gamma, DecompositionTag tag)
	Update three vectors such that a = alpha * a + beta * b + gamma * c. 2D specialization.

template<class Array_t>
void	Cabana::Grid::ArrayOp::dot (const Array_t &a, const Array_t &b, std::vector< typename Array_t::value_type > &products)
	Compute the dot product of owned space of two arrays.

template<class Array_t>
void	Cabana::Grid::ArrayOp::normInf (const Array_t &array, std::vector< typename Array_t::value_type > &norms)
	Calculate the infinity-norm of the owned elements of the array.

template<class Array_t>
void	Cabana::Grid::ArrayOp::norm1 (const Array_t &array, std::vector< typename Array_t::value_type > &norms)
	Calculate the one-norm of the owned elements of the array.

template<class Array_t>
void	Cabana::Grid::ArrayOp::norm2 (const Array_t &array, std::vector< typename Array_t::value_type > &norms)
	Calculate the two-norm of the owned elements of the array.

Detailed Description

Grid field arrays.

Function Documentation

◆ assign()

template<class Array_t, class DecompositionTag>

void Cabana::Grid::ArrayOp::assign	(	Array_t &	array,
		const typename Array_t::value_type	alpha,
		DecompositionTag	tag )

Assign a scalar value to every element of an array.

Parameters

array	The array to assign the value to.
alpha	The value to assign to the array.
tag	The tag for the decomposition over which to perform the operation.

◆ clone()

template<class Scalar, class... Params, class EntityType, class MeshType>

std::shared_ptr< Array< Scalar, EntityType, MeshType, Params... > > Cabana::Grid::ArrayOp::clone ( const Array< Scalar, EntityType, MeshType, Params... > & array )

Clone an array. Do not initialize the clone.

Parameters

array The array to clone.

◆ cloneCopy()

template<class Array_t, class DecompositionTag>

std::shared_ptr< Array_t > Cabana::Grid::ArrayOp::cloneCopy	(	const Array_t &	array,
		DecompositionTag	tag )

Clone an array and copy its contents into the clone.

Parameters

array	The array to clone.
tag	The tag for the decomposition over which to perform the copy.

◆ copy()

template<class Array_t, class DecompositionTag>

void Cabana::Grid::ArrayOp::copy	(	Array_t &	a,
		const Array_t &	b,
		DecompositionTag	tag )

Copy one array into another over the designated decomposition. A <- B.

Parameters

a	The array to which the data will be copied.
b	The array from which the data will be copied.
tag	The tag for the decomposition over which to perform the operation.

◆ createArray()

template<class Scalar, class... Params, class EntityType, class MeshType>

std::shared_ptr< Array< Scalar, EntityType, MeshType, Params... > > Cabana::Grid::createArray	(	const std::string &	label,
		const std::shared_ptr< ArrayLayout< EntityType, MeshType > > &	layout )

Create an array with the given array layout. Views are constructed over the ghosted index space of the layout.

Parameters

label	A label for the view.
layout	The array layout over which to construct the view.

Returns: Shared pointer to an Array.

◆ createArrayLayout() [1/2]

template<class EntityType, class MeshType>

std::shared_ptr< ArrayLayout< EntityType, MeshType > > Cabana::Grid::createArrayLayout	(	const std::shared_ptr< GlobalGrid< MeshType > > &	global_grid,
		const int	halo_cell_width,
		const int	dofs_per_entity,
		EntityType	)

Create an array layout over the entities of a grid given local grid parameters. An intermediate local grid will be created and assigned to the layout.

Parameters

global_grid	The local grid over which to create the layout.
halo_cell_width	The number of halo cells surrounding the locally owned cells.
dofs_per_entity	The number of degrees-of-freedom per grid entity.

Returns: Shared pointer to an ArrayLayout.

Note: EntityType The entity: Cell, Node, Face, or Edge

◆ createArrayLayout() [2/2]

template<class EntityType, class MeshType>

std::shared_ptr< ArrayLayout< EntityType, MeshType > > Cabana::Grid::createArrayLayout	(	const std::shared_ptr< LocalGrid< MeshType > > &	local_grid,
		const int	dofs_per_entity,
		EntityType	)

Create an array layout over the entities of a local grid.

Parameters

local_grid	The local grid over which to create the layout.
dofs_per_entity	The number of degrees-of-freedom per grid entity.

Returns: Shared pointer to an ArrayLayout.

Note: EntityType The entity: Cell, Node, Face, or Edge

◆ createSubarray()

template<class Scalar, class EntityType, class MeshType, class... Params>

std::shared_ptr< Array< Scalar, EntityType, MeshType, typename Array< Scalar, EntityType, MeshType, Params... >::subview_layout, typename Array< Scalar, EntityType, MeshType, Params... >::memory_space, typename Array< Scalar, EntityType, MeshType, Params... >::subview_memory_traits > > Cabana::Grid::createSubarray	(	const Array< Scalar, EntityType, MeshType, Params... > &	array,
		const int	dof_min,
		const int	dof_max )

Create a subarray of the given array over the given range of degrees of freedom.

Parameters

array	The array from which to create a subarray
dof_min	The minimum degree-of-freedom index of the subarray.
dof_max	The maximum degree-of-freedom index of the subarray.

Returns: Shared pointer to a new Array.

◆ dot()

template<class Array_t>

void Cabana::Grid::ArrayOp::dot	(	const Array_t &	a,
		const Array_t &	b,
		std::vector< typename Array_t::value_type > &	products )

Compute the dot product of owned space of two arrays.

Parameters

a	The first array in the dot product.
b	The second array in the dot product.
products	The dot product of each entity degree-of-freedom in the array. This vector should be pre-sized to the number of degrees-of-freedom per entity.

◆ norm1()

template<class Array_t>

void Cabana::Grid::ArrayOp::norm1	(	const Array_t &	array,
		std::vector< typename Array_t::value_type > &	norms )

Calculate the one-norm of the owned elements of the array.

Parameters

array	The array to compute the norm for.
norms	The norms for each degree-of-freedom in the array. This vector should be pre-sized to the number of degrees-of-freedom per entity.

◆ norm2()

template<class Array_t>

void Cabana::Grid::ArrayOp::norm2	(	const Array_t &	array,
		std::vector< typename Array_t::value_type > &	norms )

Calculate the two-norm of the owned elements of the array.

Parameters

array	The array to compute the norm for.
norms	The norms for each entity degree-of-freedom in the array. This vector should be pre-sized to the number of degrees-of-freedom per entity.

◆ normInf()

template<class Array_t>

void Cabana::Grid::ArrayOp::normInf	(	const Array_t &	array,
		std::vector< typename Array_t::value_type > &	norms )

Calculate the infinity-norm of the owned elements of the array.

Parameters

array	The array to compute the norm for.
norms	The norms for each degree-of-freedom in the array. This vector should be pre-sized to the number of degrees-of-freedom per entity.

◆ scale() [1/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 3==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::scale	(	Array_t &	array,
		const std::vector< typename Array_t::value_type > &	alpha,
		DecompositionTag	tag )

Scale every element of an array by a scalar. 3D specialization.

Parameters

array	The array to scale.
alpha	The values to scale the array by. A value must be provided for each entity degree-of-freedom in the array.
tag	The tag for the decomposition over which to perform the operation.

◆ scale() [2/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 2==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::scale	(	Array_t &	array,
		const std::vector< typename Array_t::value_type > &	alpha,
		DecompositionTag	tag )

Scale every element of an array by a scalar. 2D specialization.

Parameters

array	The array to scale.
alpha	The values to scale the array by. A value must be provided for each entity degree-of-freedom in the array.
tag	The tag for the decomposition over which to perform the operation.

◆ scale() [3/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 3==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::scale	(	Array_t &	array,
		const typename Array_t::value_type	alpha,
		DecompositionTag	tag )

Scale every element of an array by a scalar value. 3D specialization.

Parameters

array	The array to scale.
alpha	The value to scale the array by.
tag	The tag for the decomposition over which to perform the operation.

◆ scale() [4/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 2==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::scale	(	Array_t &	array,
		const typename Array_t::value_type	alpha,
		DecompositionTag	tag )

Scale every element of an array by a scalar value. 2D specialization.

Parameters

array	The array to scale.
alpha	The value to scale the array by.
tag	The tag for the decomposition over which to perform the operation.

◆ update() [1/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 3==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::update	(	Array_t &	a,
		const typename Array_t::value_type	alpha,
		const Array_t &	b,
		const typename Array_t::value_type	beta,
		const Array_t &	c,
		const typename Array_t::value_type	gamma,
		DecompositionTag	tag )

Update three vectors such that a = alpha * a + beta * b + gamma * c. 3D specialization.

Parameters

a	The array that will be updated.
alpha	The value to scale a by.
b	The first array to add to a.
beta	The value to scale b by.
c	The second array to add to a.
gamma	The value to scale b by.
tag	The tag for the decomposition over which to perform the operation.

◆ update() [2/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 2==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::update	(	Array_t &	a,
		const typename Array_t::value_type	alpha,
		const Array_t &	b,
		const typename Array_t::value_type	beta,
		const Array_t &	c,
		const typename Array_t::value_type	gamma,
		DecompositionTag	tag )

Update three vectors such that a = alpha * a + beta * b + gamma * c. 2D specialization.

Parameters

a	The array that will be updated.
alpha	The value to scale a by.
b	The first array to add to a.
beta	The value to scale b by.
c	The second array to add to a.
gamma	The value to scale b by.
tag	The tag for the decomposition over which to perform the operation.

◆ update() [3/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 3==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::update	(	Array_t &	a,
		const typename Array_t::value_type	alpha,
		const Array_t &	b,
		const typename Array_t::value_type	beta,
		DecompositionTag	tag )

Update two vectors such that a = alpha * a + beta * b. 3D specialization.

Parameters

a	The array that will be updated.
alpha	The value to scale a by.
b	The array to add to a.
beta	The value to scale b by.
tag	The tag for the decomposition over which to perform the operation.

◆ update() [4/4]

template<class Array_t, class DecompositionTag>

std::enable_if_t< 2==Array_t::num_space_dim, void > Cabana::Grid::ArrayOp::update	(	Array_t &	a,
		const typename Array_t::value_type	alpha,
		const Array_t &	b,
		const typename Array_t::value_type	beta,
		DecompositionTag	tag )

Update two vectors such that a = alpha * a + beta * b. 2D specialization.

Parameters

a	The array that will be updated.
alpha	The value to scale a by.
b	The array to add to a.
beta	The value to scale b by.
tag	The tag for the decomposition over which to perform the operation.

Classes

Namespaces

Functions

Detailed Description

Function Documentation

◆ assign()

◆ clone()

◆ cloneCopy()

◆ copy()

◆ createArray()

◆ createArrayLayout() [1/2]

◆ createArrayLayout() [2/2]

◆ createSubarray()

◆ dot()

◆ norm1()

◆ norm2()

◆ normInf()

◆ scale() [1/4]

◆ scale() [2/4]

◆ scale() [3/4]

◆ scale() [4/4]

◆ update() [1/4]

◆ update() [2/4]

◆ update() [3/4]

◆ update() [4/4]
