Cabana::Grid::BlockPartitioner< NumSpaceDim > Class Template Reference

Block partitioner base class. More...

#include <Cabana_Grid_Partitioner.hpp>

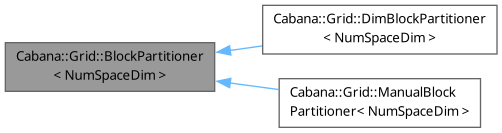

Inheritance diagram for Cabana::Grid::BlockPartitioner< NumSpaceDim >:

Public Member Functions
virtual std::array< int, num_space_dim >	ranksPerDimension (MPI_Comm comm, const std::array< int, num_space_dim > &global_cells_per_dim) const =0
	Get the number of MPI ranks in each dimension of the grid.
virtual void	ownedCellInfo (MPI_Comm cart_comm, const std::array< int, num_space_dim > &global_cells_per_dim, std::array< int, num_space_dim > &owned_num_cell, std::array< int, num_space_dim > &global_cell_offset) const =0
	Get the owned number of cells and global cell offset of the current MPI rank.

Static Public Attributes
static constexpr std::size_t	num_space_dim = NumSpaceDim
	Spatial dimension.

Detailed Description

template<std::size_t NumSpaceDim>
class Cabana::Grid::BlockPartitioner< NumSpaceDim >

Block partitioner base class.

Template Parameters

NumSpaceDim

Spatial dimension. Given global mesh parameters, the block partitioner computes how many MPI ranks are assigned to each logical dimension.

Member Function Documentation

ownedCellInfo()

template<std::size_t NumSpaceDim>

virtual void Cabana::Grid::BlockPartitioner< NumSpaceDim >::ownedCellInfo ( MPI_Comm cart_comm, const std::array< int, num_space_dim > & global_cells_per_dim, std::array< int, num_space_dim > & owned_num_cell, std::array< int, num_space_dim > & global_cell_offset ) const

pure virtual

Get the owned number of cells and global cell offset of the current MPI rank.

Parameters

cart_comm	The MPI Cartesian communicator for the partitioning.
global_cells_per_dim	The number of global cells in each dimension.
owned_num_cell	(Return) The owned number of cells of the current MPI rank in each dimension.
global_cell_offset	(Return) The global cell offset of the current MPI rank in each dimension

Implemented in Cabana::Grid::DimBlockPartitioner< NumSpaceDim >, Cabana::Grid::ManualBlockPartitioner< NumSpaceDim >, and Cabana::Grid::SparseDimPartitioner< MemorySpace, CellPerTileDim, NumSpaceDim >.

ranksPerDimension()

template<std::size_t NumSpaceDim>

virtual std::array< int, num_space_dim > Cabana::Grid::BlockPartitioner< NumSpaceDim >::ranksPerDimension ( MPI_Comm comm, const std::array< int, num_space_dim > & global_cells_per_dim ) const

pure virtual

Get the number of MPI ranks in each dimension of the grid.

Parameters

comm	The communicator to use for the partitioning.
global_cells_per_dim	The number of global cells in each dimension.

Returns

The number of MPI ranks in each dimension of the grid.

Implemented in Cabana::Grid::SparseDimPartitioner< MemorySpace, CellPerTileDim, NumSpaceDim >.

---

The documentation for this class was generated from the following file:

• grid/src/Cabana_Grid_Partitioner.hpp
