Interface to heFFTe fast Fourier transform library. More...

#include <Cabana_Grid_FastFourierTransform.hpp>

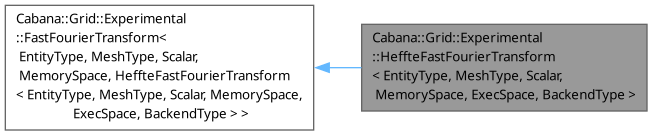

Inheritance diagram for Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >:

[legend]

Collaboration diagram for Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >:

[legend]

Public Types
using	value_type = Scalar
	Scalar value type.

using	memory_space = typename MemorySpace::memory_space
	Kokkos memory space.

using	execution_space = ExecSpace
	Kokkos execution space.

using	backend_type = BackendType
	FFT backend type.

using	mesh_type = MeshType
	Mesh type.

using	heffte_backend_type
	heFFTe backend type.

Public Types inherited from Cabana::Grid::Experimental::FastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType > >
using	entity_type
	Array entity type.

using	mesh_type
	Mesh type.

using	value_type
	Scalar value type.

using	memory_space
	Kokkos memory space.

using	execution_space
	Kokkos execution space.

Public Member Functions
	HeffteFastFourierTransform (execution_space exec_space, const ArrayLayout< EntityType, MeshType > &layout, const FastFourierTransformParams &params)
	Constructor.

template<class Array_t, class ScaleType>
void	forwardImpl (const Array_t &x, const ScaleType)
	Do a forward FFT.

template<class Array_t, class ScaleType>
void	reverseImpl (const Array_t &x, const ScaleType)
	Do a reverse FFT.

template<class Array_t>
void	compute (const Array_t &x, const int flag, const heffte::scale scale)
	Do the FFT.

Public Member Functions inherited from Cabana::Grid::Experimental::FastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType > >
	FastFourierTransform (const ArrayLayout< EntityType, MeshType > &layout)
	Constructor.

void	checkArrayDofs (const int dof)
	Ensure the FFT compute array has the correct DoFs.

void	forward (const Array_t &x, const ScaleType scaling, typename std::enable_if<(is_array< Array_t >::value &&is_matching_array< typename Array_t::entity_type, typename Array_t::mesh_type, typename Array_t::memory_space, typename Array_t::value_type, entity_type, mesh_type, memory_space, value_type >::value), int >::type *=0)
	Do a forward FFT.

void	reverse (const Array_t &x, const ScaleType scaling, typename std::enable_if<(is_array< Array_t >::value &&is_matching_array< typename Array_t::entity_type, typename Array_t::mesh_type, typename Array_t::memory_space, typename Array_t::value_type, entity_type, mesh_type, memory_space, value_type >::value), int >::type *=0)
	Do a reverse FFT.

std::enable_if_t< 3==NSD, void >	copyToLocal (ExecutionSpace exec_space, const IndexSpaceType own_space, LViewType &l_view, const LGViewType lg_view)
	Copy owned data for FFT.

std::enable_if_t< 2==NSD, void >	copyToLocal (ExecutionSpace space, const IndexSpaceType own_space, LViewType &l_view, const LGViewType lg_view)
	Copy owned data for FFT.

std::enable_if_t< 3==NSD, void >	copyFromLocal (ExecutionSpace space, const IndexSpaceType own_space, const LViewType l_view, LGViewType &lg_view)
	Copy owned data back after FFT.

std::enable_if_t< 2==NSD, void >	copyFromLocal (ExecutionSpace space, const IndexSpaceType own_space, const LViewType l_view, LGViewType &lg_view)
	Copy owned data back after FFT.

Public Attributes
execution_space	heffte_execution_space
	Stored execution space used by heFFTe.

Public Attributes inherited from Cabana::Grid::Experimental::FastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType > >
std::array< int, num_space_dim >	global_high
	Global high box corner.

std::array< int, num_space_dim >	global_low
	Global low box corner.

Static Public Attributes
static constexpr std::size_t	num_space_dim = mesh_type::num_space_dim
	Spatial dimension.

Static Public Attributes inherited from Cabana::Grid::Experimental::FastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType > >
static constexpr std::size_t	num_space_dim
	Spatial dimension.

Detailed Description

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>
class Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >

Interface to heFFTe fast Fourier transform library.

Member Typedef Documentation

◆ heffte_backend_type

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>

using Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >::heffte_backend_type

Initial value:


        typename Impl::HeffteBackendTraits<execution_space,
                                           backend_type>::backend_type

heFFTe backend type.

Constructor & Destructor Documentation

◆ HeffteFastFourierTransform()

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>

Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >::HeffteFastFourierTransform	(	execution_space	exec_space,
		const ArrayLayout< EntityType, MeshType > &	layout,
		const FastFourierTransformParams &	params )

inline

Constructor.

Parameters

exec_space	Kokkos execution space
layout	The array layout defining the vector space of the transform.
params	Parameters for the FFT.

Member Function Documentation

◆ compute()

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>

template<class Array_t>

void Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >::compute	(	const Array_t &	x,
		const int	flag,
		const heffte::scale	scale )

inline

Do the FFT.

Parameters

x	The array on which to perform the transform.
flag	Flag for forward or reverse.
scale	Method of scaling data.

◆ forwardImpl()

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>

template<class Array_t, class ScaleType>

void Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >::forwardImpl	(	const Array_t &	x,
		const ScaleType	)

inline

Do a forward FFT.

Parameters

x	The array on which to perform the forward transform.

Note: ScaleType Method of scaling data.

◆ reverseImpl()

template<class EntityType, class MeshType, class Scalar, class MemorySpace, class ExecSpace, class BackendType>

template<class Array_t, class ScaleType>

void Cabana::Grid::Experimental::HeffteFastFourierTransform< EntityType, MeshType, Scalar, MemorySpace, ExecSpace, BackendType >::reverseImpl	(	const Array_t &	x,
		const ScaleType	)

inline

Do a reverse FFT.

Parameters

x	The array on which to perform the reverse transform

Note: ScaleType Method of scaling data.

The documentation for this class was generated from the following file:

grid/src/Cabana_Grid_FastFourierTransform.hpp
