Hypre semi-structured solver interface for scalar fields. More...

#include <Cabana_Grid_HypreSemiStructuredSolver.hpp>

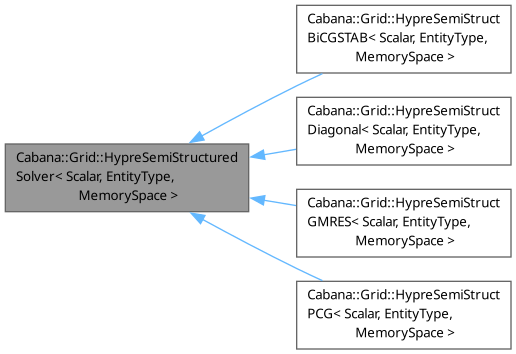

Inheritance diagram for Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >:

[legend]

Public Types
using	entity_type = EntityType
	Entity type.

using	memory_space = MemorySpace
	Kokkos memory space..

using	value_type = Scalar
	Scalar value type.

Public Member Functions
template<class ArrayLayout_t>
	HypreSemiStructuredSolver (const ArrayLayout_t &layout, int n_vars, const bool is_preconditioner=false)
	Hypre memory space compatibility check.

bool	isPreconditioner () const
	Return if this solver is a preconditioner.

void	createMatrixStencil (int NumSpaceDim, int var=0, int n_vars=3, std::vector< unsigned > stencil_length={ 7, 7, 7 })
	Create the operator stencil to be filled by setMatrixStencil.

template<std::size_t NumSpaceDim>
void	setMatrixStencil (const std::vector< std::array< int, NumSpaceDim > > &stencil, int var=0, int dep=0)
	Set the operator stencil.

void	setSolverGraph (int n_vars)
	Set the solver graph.

template<class Array_t>
void	setMatrixValues (const Array_t &values, int v_x, int v_h)
	Set the matrix values.

void	printMatrix (const char *prefix)
	Print the hypre matrix to output file.

void	printLHS (const char *prefix)
	Print the hypre LHS to output file.

void	printRHS (const char *prefix)
	Print the hypre RHS to output file.

void	setTolerance (const double tol)
	Set convergence tolerance implementation.

void	setMaxIter (const int max_iter)
	Set maximum iteration implementation.

void	setPrintLevel (const int print_level)
	Set the output level.

void	setPreconditioner (const std::shared_ptr< HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace > > &preconditioner)
	Set a preconditioner.

void	setup ()
	Setup the problem.

template<class Array_t>
void	solve (const Array_t &b, Array_t &x, int n_vars=3)
	Solve the problem Ax = b for x.

int	getNumIter ()
	Get the number of iterations taken on the last solve.

double	getFinalRelativeResidualNorm ()
	Get the relative residual norm achieved on the last solve.

virtual HYPRE_SStructSolver	getHypreSolver () const =0
	Get the preconditioner.

virtual HYPRE_PtrToSStructSolverFcn	getHypreSetupFunction () const =0
	Get the preconditioner setup function.

virtual HYPRE_PtrToSStructSolverFcn	getHypreSolveFunction () const =0
	Get the preconditioner solve function.

Public Attributes
const int	object_type = HYPRE_SSTRUCT
	Object Type for SStruct.

Protected Member Functions
virtual void	setToleranceImpl (const double tol)=0
	Set convergence tolerance implementation.

virtual void	setMaxIterImpl (const int max_iter)=0
	Set maximum iteration implementation.

virtual void	setPrintLevelImpl (const int print_level)=0
	Set the output level.

virtual void	setupImpl ()=0
	Setup implementation.

virtual void	solveImpl ()=0
	Solver implementation.

virtual int	getNumIterImpl ()=0
	Get the number of iterations taken on the last solve.

virtual double	getFinalRelativeResidualNormImpl ()=0
	Get the relative residual norm achieved on the last solve.

virtual void	setPreconditionerImpl (const HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace > &preconditioner)=0
	Set a preconditioner.

void	checkHypreError (const int error) const
	Check a hypre error.

Protected Attributes
HYPRE_SStructMatrix	_A
	Matrix for the problem Ax = b.

HYPRE_SStructVector	_b
	Forcing term for the problem Ax = b.

HYPRE_SStructVector	_x
	Solution to the problem Ax = b.

Detailed Description

template<class Scalar, class EntityType, class MemorySpace>
class Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >

Hypre semi-structured solver interface for scalar fields.

Constructor & Destructor Documentation

◆ HypreSemiStructuredSolver()

template<class Scalar, class EntityType, class MemorySpace>

template<class ArrayLayout_t>

Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::HypreSemiStructuredSolver	(	const ArrayLayout_t &	layout,
		int	n_vars,
		const bool	is_preconditioner = false )

inline

Hypre memory space compatibility check.

Constructor.

Parameters

layout	The array layout defining the vector space of the solver.
n_vars	Number of variable in the system domain
is_preconditioner	Flag indicating if this solver will be used as a preconditioner.

Member Function Documentation

◆ createMatrixStencil()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::createMatrixStencil	(	int	NumSpaceDim,
		int	var = 0,
		int	n_vars = 3,
		std::vector< unsigned >	stencil_length = { 7, 7, 7 } )

inline

Create the operator stencil to be filled by setMatrixStencil.

Parameters

NumSpaceDim	The number of spatial dimensions in the linear system being solved.
var	The variable number that the stencil corresponds to, in essence which equation number in the linear system
n_vars	number of variables in the linear system
stencil_length	A vector containing the length of the stencil for variable `var` for each variable in the system to be created for HYPRE

◆ getFinalRelativeResidualNormImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual double Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::getFinalRelativeResidualNormImpl ( )

protectedpure virtual

Get the relative residual norm achieved on the last solve.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ getHypreSetupFunction()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_PtrToSStructSolverFcn Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSetupFunction ( ) const

pure virtual

Get the preconditioner setup function.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ getHypreSolveFunction()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_PtrToSStructSolverFcn Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSolveFunction ( ) const

pure virtual

Get the preconditioner solve function.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ getHypreSolver()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_SStructSolver Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSolver ( ) const

pure virtual

Get the preconditioner.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ getNumIterImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual int Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::getNumIterImpl ( )

protectedpure virtual

Get the number of iterations taken on the last solve.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ printLHS()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::printLHS ( const char * prefix )

inline

Print the hypre LHS to output file.

Parameters

prefix File prefix for where hypre output is written

◆ printMatrix()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::printMatrix ( const char * prefix )

inline

Print the hypre matrix to output file.

Parameters

prefix File prefix for where hypre output is written

◆ printRHS()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::printRHS ( const char * prefix )

inline

Print the hypre RHS to output file.

Parameters

prefix File prefix for where hypre output is written

◆ setMatrixStencil()

template<class Scalar, class EntityType, class MemorySpace>

template<std::size_t NumSpaceDim>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setMatrixStencil	(	const std::vector< std::array< int, NumSpaceDim > > &	stencil,
		int	var = 0,
		int	dep = 0 )

inline

Set the operator stencil.

Parameters

stencil	The (i,j,k) offsets describing the structured matrix entries at each grid point. Offsets are defined relative to an index.
var	The variable number that the stencil corresponds to, in essence which equation number in the linear system
dep	The integer for the independent variable in the linear system that is currently being set

◆ setMatrixValues()

template<class Scalar, class EntityType, class MemorySpace>

template<class Array_t>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setMatrixValues	(	const Array_t &	values,
		int	v_x,
		int	v_h )

inline

Set the matrix values.

Parameters

values	The matrix entry values. For each entity over which the vector space is defined an entry for each stencil element is required. The order of the stencil elements is that same as that in the stencil definition. Note that values corresponding to stencil entries outside of the domain should be set to zero.
v_x	The variable index for the independent variable (column) that is being set by the current call to setMatrixValues
v_h	The variable index for the equation (row) that is being set by the current call to setMatrixValues

◆ setMaxIterImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setMaxIterImpl ( const int max_iter )

protectedpure virtual

Set maximum iteration implementation.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ setPreconditionerImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setPreconditionerImpl ( const HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace > & preconditioner )

protectedpure virtual

Set a preconditioner.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ setPrintLevelImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setPrintLevelImpl ( const int print_level )

protectedpure virtual

Set the output level.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ setSolverGraph()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setSolverGraph ( int n_vars )

inline

Set the solver graph.

Parameters

n_vars The number of variables (and equations) in the specified problem domain

◆ setToleranceImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setToleranceImpl ( const double tol )

protectedpure virtual

Set convergence tolerance implementation.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ setupImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::setupImpl ( )

protectedpure virtual

Setup implementation.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

◆ solve()

template<class Scalar, class EntityType, class MemorySpace>

template<class Array_t>

void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::solve	(	const Array_t &	b,
		Array_t &	x,
		int	n_vars = 3 )

inline

Solve the problem Ax = b for x.

Parameters

b	The forcing term.
x	The solution.
n_vars	Number of variables in the solution domain

◆ solveImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreSemiStructuredSolver< Scalar, EntityType, MemorySpace >::solveImpl ( )

protectedpure virtual

Solver implementation.

Implemented in Cabana::Grid::HypreSemiStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreSemiStructGMRES< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreSemiStructPCG< Scalar, EntityType, MemorySpace >.

The documentation for this class was generated from the following file:

grid/src/Cabana_Grid_HypreSemiStructuredSolver.hpp
