Hypre structured solver interface for scalar fields. More...

#include <Cabana_Grid_HypreStructuredSolver.hpp>

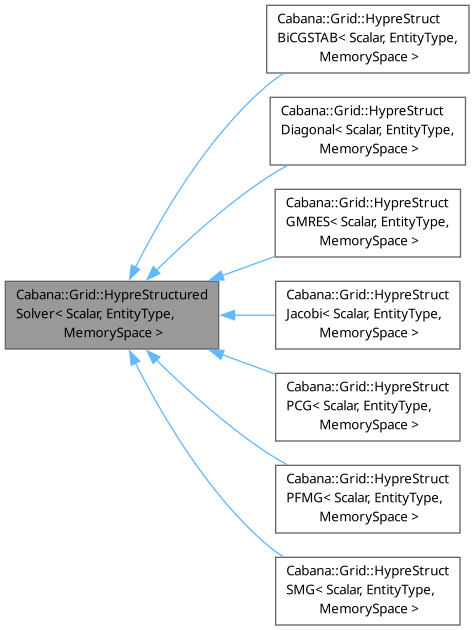

Inheritance diagram for Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >:

[legend]

Public Types
using	entity_type = EntityType
	Entity type.

using	memory_space = MemorySpace
	Kokkos memory space..

using	value_type = Scalar
	Scalar value type.

Public Member Functions
template<class ArrayLayout_t>
	HypreStructuredSolver (const ArrayLayout_t &layout, const bool is_preconditioner=false)
	Hypre memory space compatibility check.

bool	isPreconditioner () const
	Return if this solver is a preconditioner.

template<std::size_t NumSpaceDim>
void	setMatrixStencil (const std::vector< std::array< int, NumSpaceDim > > &stencil, const bool is_symmetric=false)
	Set the operator stencil.

template<class Array_t>
void	setMatrixValues (const Array_t &values)
	Set the matrix values.

void	printMatrix (const char *prefix)
	Print the hypre matrix to output file.

void	printLHS (const char *prefix)
	Print the hypre LHS to output file.

void	printRHS (const char *prefix)
	Print the hypre RHS to output file.

void	setTolerance (const double tol)
	Set convergence tolerance implementation.

void	setMaxIter (const int max_iter)
	Set maximum iteration implementation.

void	setPrintLevel (const int print_level)
	Set the output level.

void	setPreconditioner (const std::shared_ptr< HypreStructuredSolver< Scalar, EntityType, MemorySpace > > &preconditioner)
	Set a preconditioner.

void	setup ()
	Setup the problem.

template<class Array_t>
void	solve (const Array_t &b, Array_t &x)
	Solve the problem Ax = b for x.

int	getNumIter ()
	Get the number of iterations taken on the last solve.

double	getFinalRelativeResidualNorm ()
	Get the relative residual norm achieved on the last solve.

virtual HYPRE_StructSolver	getHypreSolver () const =0
	Get the preconditioner.

virtual HYPRE_PtrToStructSolverFcn	getHypreSetupFunction () const =0
	Get the preconditioner setup function.

virtual HYPRE_PtrToStructSolverFcn	getHypreSolveFunction () const =0
	Get the preconditioner solve function.

Protected Member Functions
virtual void	setToleranceImpl (const double tol)=0
	Set convergence tolerance implementation.

virtual void	setMaxIterImpl (const int max_iter)=0
	Set maximum iteration implementation.

virtual void	setPrintLevelImpl (const int print_level)=0
	Set the output level.

virtual void	setupImpl ()=0
	Setup implementation.

virtual void	solveImpl ()=0
	Solver implementation.

virtual int	getNumIterImpl ()=0
	Get the number of iterations taken on the last solve.

virtual double	getFinalRelativeResidualNormImpl ()=0
	Get the relative residual norm achieved on the last solve.

virtual void	setPreconditionerImpl (const HypreStructuredSolver< Scalar, EntityType, MemorySpace > &preconditioner)=0
	Set a preconditioner.

void	checkHypreError (const int error) const
	Check a hypre error.

Protected Attributes
HYPRE_StructMatrix	_A
	Matrix for the problem Ax = b.

HYPRE_StructVector	_b
	Forcing term for the problem Ax = b.

HYPRE_StructVector	_x
	Solution to the problem Ax = b.

Detailed Description

template<class Scalar, class EntityType, class MemorySpace>
class Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >

Hypre structured solver interface for scalar fields.

Constructor & Destructor Documentation

◆ HypreStructuredSolver()

template<class Scalar, class EntityType, class MemorySpace>

template<class ArrayLayout_t>

Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::HypreStructuredSolver	(	const ArrayLayout_t &	layout,
		const bool	is_preconditioner = false )

inline

Hypre memory space compatibility check.

Constructor.

Parameters

layout	The array layout defining the vector space of the solver.
is_preconditioner	Flag indicating if this solver will be used as a preconditioner.

Member Function Documentation

◆ getFinalRelativeResidualNormImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual double Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::getFinalRelativeResidualNormImpl ( )

protectedpure virtual

Get the relative residual norm achieved on the last solve.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ getHypreSetupFunction()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_PtrToStructSolverFcn Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSetupFunction ( ) const

pure virtual

Get the preconditioner setup function.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ getHypreSolveFunction()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_PtrToStructSolverFcn Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSolveFunction ( ) const

pure virtual

Get the preconditioner solve function.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ getHypreSolver()

template<class Scalar, class EntityType, class MemorySpace>

virtual HYPRE_StructSolver Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::getHypreSolver ( ) const

pure virtual

Get the preconditioner.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ getNumIterImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual int Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::getNumIterImpl ( )

protectedpure virtual

Get the number of iterations taken on the last solve.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ printLHS()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::printLHS ( const char * prefix )

inline

Print the hypre LHS to output file.

Parameters

prefix File prefix for where hypre output is written

◆ printMatrix()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::printMatrix ( const char * prefix )

inline

Print the hypre matrix to output file.

Parameters

prefix File prefix for where hypre output is written

◆ printRHS()

template<class Scalar, class EntityType, class MemorySpace>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::printRHS ( const char * prefix )

inline

Print the hypre RHS to output file.

Parameters

prefix File prefix for where hypre output is written

◆ setMatrixStencil()

template<class Scalar, class EntityType, class MemorySpace>

template<std::size_t NumSpaceDim>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setMatrixStencil	(	const std::vector< std::array< int, NumSpaceDim > > &	stencil,
		const bool	is_symmetric = false )

inline

Set the operator stencil.

Parameters

stencil	The (i,j,k) offsets describing the structured matrix entries at each grid point. Offsets are defined relative to an index.
is_symmetric	If true the matrix is designated as symmetric. The stencil entries should only contain one entry from each symmetric component if this is true.

◆ setMatrixValues()

template<class Scalar, class EntityType, class MemorySpace>

template<class Array_t>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setMatrixValues ( const Array_t & values )

inline

Set the matrix values.

Parameters

values The matrix entry values. For each entity over which the vector space is defined an entry for each stencil element is required. The order of the stencil elements is that same as that in the stencil definition. Note that values corresponding to stencil entries outside of the domain should be set to zero.

◆ setMaxIterImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setMaxIterImpl ( const int max_iter )

protectedpure virtual

Set maximum iteration implementation.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ setPreconditionerImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setPreconditionerImpl ( const HypreStructuredSolver< Scalar, EntityType, MemorySpace > & preconditioner )

protectedpure virtual

Set a preconditioner.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ setPrintLevelImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setPrintLevelImpl ( const int print_level )

protectedpure virtual

Set the output level.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ setToleranceImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setToleranceImpl ( const double tol )

protectedpure virtual

Set convergence tolerance implementation.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ setupImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::setupImpl ( )

protectedpure virtual

Setup implementation.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

◆ solve()

template<class Scalar, class EntityType, class MemorySpace>

template<class Array_t>

void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::solve	(	const Array_t &	b,
		Array_t &	x )

inline

Solve the problem Ax = b for x.

Parameters

b	The forcing term.
x	The solution.

◆ solveImpl()

template<class Scalar, class EntityType, class MemorySpace>

virtual void Cabana::Grid::HypreStructuredSolver< Scalar, EntityType, MemorySpace >::solveImpl ( )

protectedpure virtual

Solver implementation.

Implemented in Cabana::Grid::HypreStructBiCGSTAB< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructDiagonal< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructGMRES< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructJacobi< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPCG< Scalar, EntityType, MemorySpace >, Cabana::Grid::HypreStructPFMG< Scalar, EntityType, MemorySpace >, and Cabana::Grid::HypreStructSMG< Scalar, EntityType, MemorySpace >.

The documentation for this class was generated from the following file:

grid/src/Cabana_Grid_HypreStructuredSolver.hpp
